Description

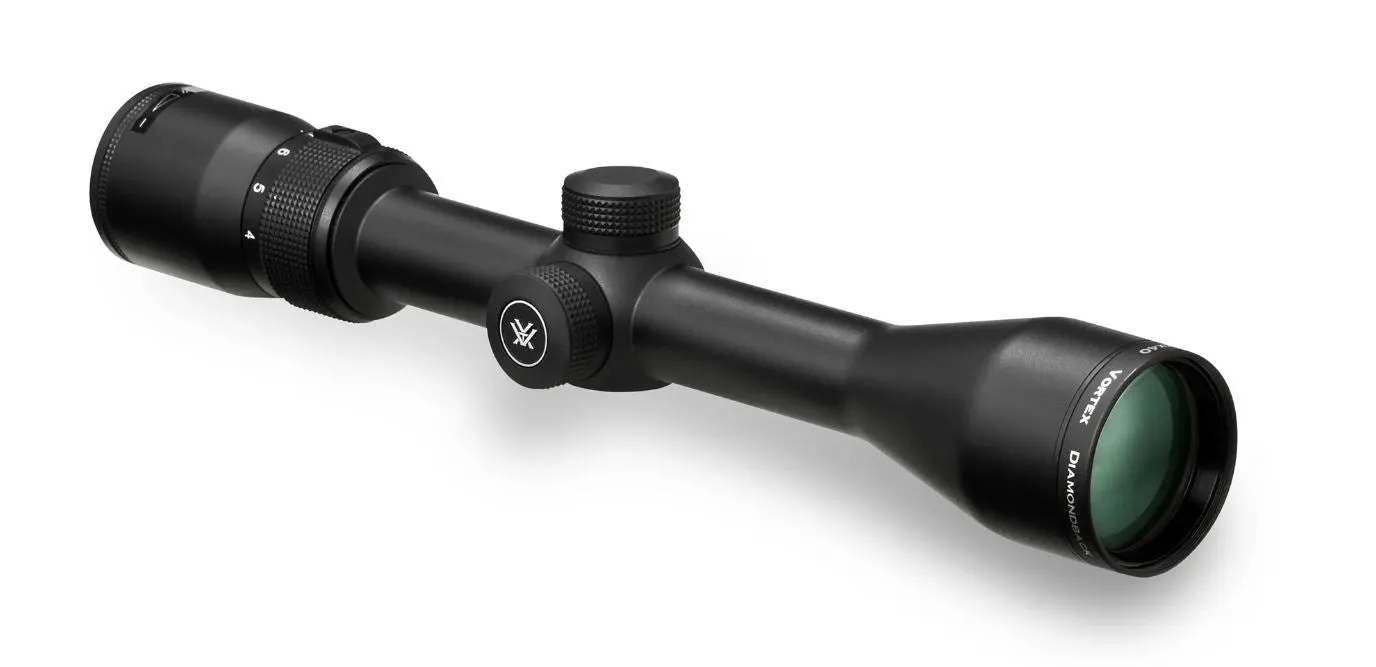

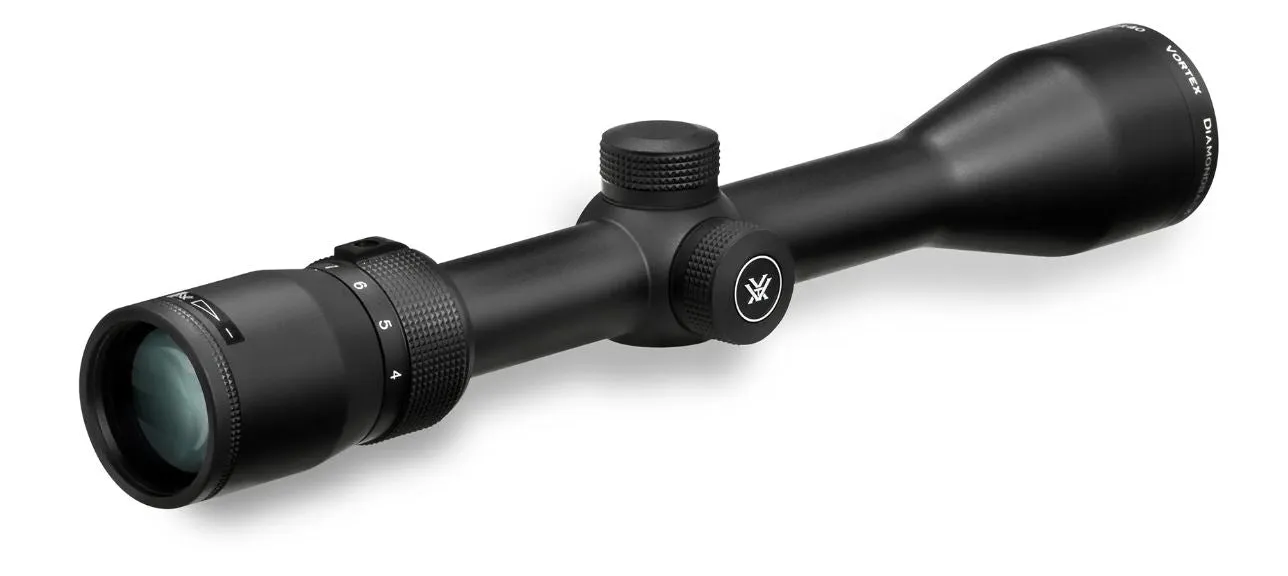

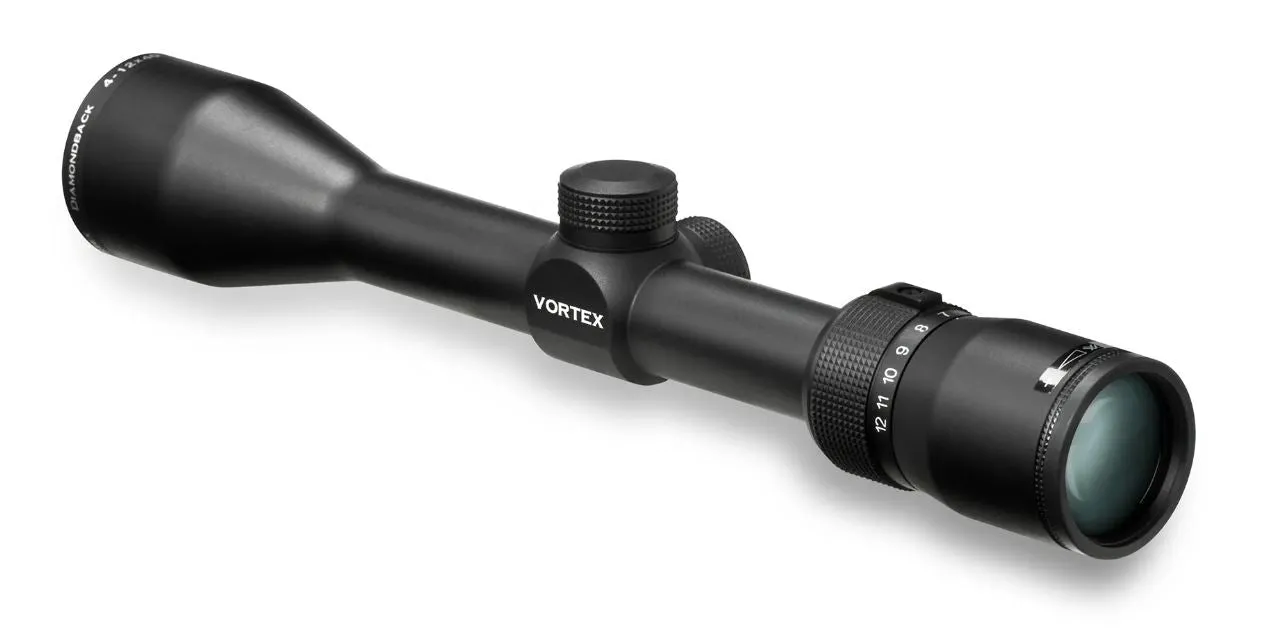

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

Diamondback 4-12x40 Dimensions (in inches)

Included in the Box

• Removable lens covers
• Lens cloth

Specs

• Magnification 4-12x
• Objective Lens Diameter 40 mm
• Eye Relief 3.1 inches
• Field of View 32.4-11.3 ft/100 yds
• Tube Size 1 inch
• Turret Style Capped
• Adjustment Graduation 1/4 MOA
• Travel Per Rotation 15 MOA
• Max Elevation Adjustment 60 MOA
• Max Windage Adjustment 60 MOA
• Parallax Setting 100 yards
• Length 12 inches
• Weight 14.6 oz

Optical Features

• Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

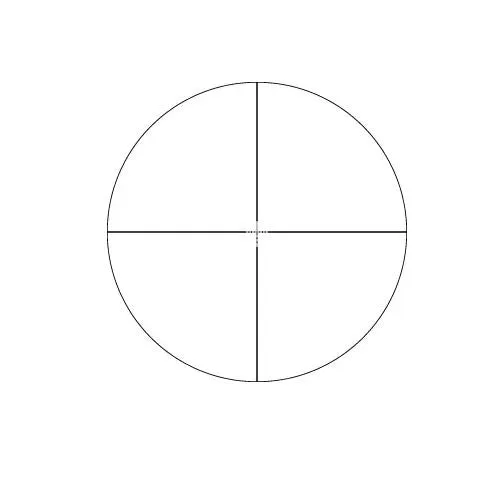

• Second Focal Plane Reticle: Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features

• Tube Size: 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
• Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
• Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof: Rugged construction withstands recoil and impact.
• Hard Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
• Capped Reset Turrets: Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

Internal Mechanism Design Features

• Precision-Glide Erector System: This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

Convenience Features

• Fast Focus Eyepiece: Allows quick and easy reticle focusing.
